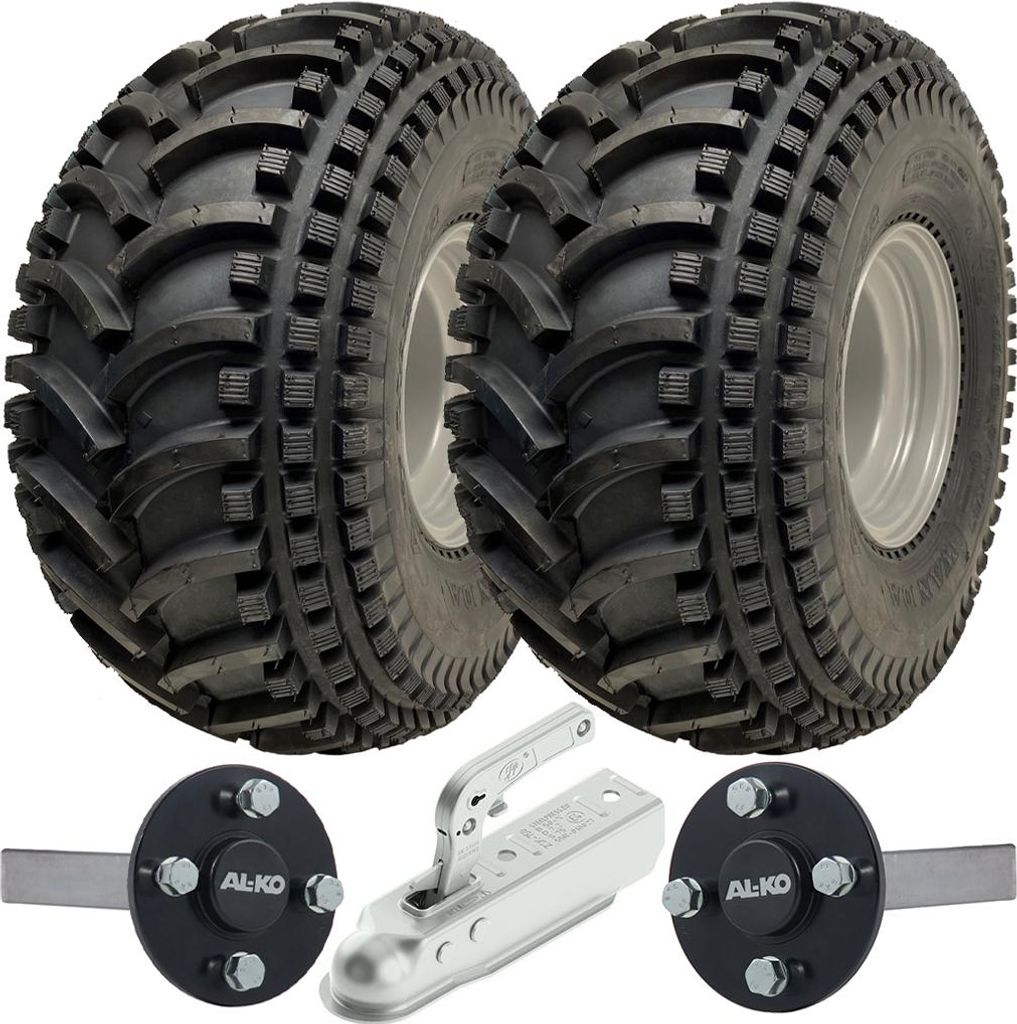

22x11.00-8 Open Centre P308 ATV Trailer Kit Wheels ALKO Axles & SPP Hitch 310kgs

Foris 1 brand new 22x11.00-8 ATV trailer kit.Contents of this kit include:2 x Wheels, 22x11.00-8.2 x ALKO Stub axles, 35x35x200mm solid stub.1 x Pressed Steel Tow Hitch.Wheel Specifications:22x11.00-8 4ply Wanda P308 knobby open centre tyres on steel rim 4x100mm PCD,Overall diameter: 535mm,Max width of tyre: 260mm,Tread depth: 16mm,Inflation: 5psi,Max load per wheel: 155kg @ 100km/h (load/speed index: 43J),E-marked road legal tyres,Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.Hub & Stub Specifications:Hubs are forged steel, fitted with 4x 12mm wheel bolts,PCD is 100mm,Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,The shaft is 35x35mm x 200mm long, solid steel,Manufactured by ALKO in Europe.Hitch Specifications:750kg pressed steel hitch, high quality zinc plated finish,Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts(bolts & lock nuts are provided with this kit).These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).These hitches may be coupled only with class A ball hitch couplings (Ø50). The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.In order to ensure even greater safety, each coupling head is equipped with a lock to prevent the mechanism from opening.Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.Maximum Kit load capacity 310kgs.
